libsswf: sswf::TagBaseID Class Reference

The base of all the tags with an ID. More...

#include <libsswf.h>

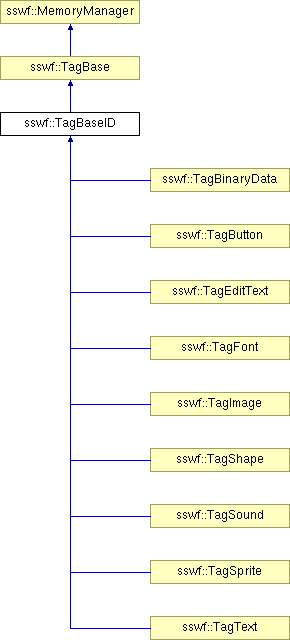

Inheritance diagram for sswf::TagBaseID:

:TagBase :MemoryManager :TagBinaryData :TagButton :TagEditText :TagFont :TagImage :TagShape :TagSound :TagSprite :TagText

List of all members.

Public Member Functions

bool HasIdentification (void) const
 Test whether a tag which should have an ID really has one.
virtual sswf_id_t Identification (void) const
 Return this tag identifier.
void NoIdentification (void)
 Release the identification for this tag.
ErrorManager::error_code_t ParseID (const Data &data)
 Read the ID of this object from data.
int SaveID (Data &data) const
 Save the object identifier in a Data buffer.
 TagBaseID (const char *name, TagBase *parent)
 Initialize the base information of a tag with an identifier.
virtual ~TagBaseID ()
 Destroys the base information of a tag with an identifier.

Private Attributes

sswf_id_t f_id
bool f_identified

Detailed Description

A set of tags have an identifier. They all derive from the TagBaseID class.

The TagBaseID class is used to manage the identifiers.

It knows how to allocate a new identifier, how to forfeit an identifier, how to save an identifier.

For instance, a TagSprite derives from the TagBaseID()

See also:
SWF Alexis' Reference—swf_tag

Constructor & Destructor Documentation

TagBaseID::~TagBaseID (  )  [virtual]

The destructor releases the identification of the object and returns.

In general, the release of the identification is not required.
I added the destructor because it is needed under MinGW when compiling with .dll libraries. Otherwise it does not know what function to call. (an auto-destructor cannot be auto-imported) Otherwise, the functionality of the destructor will usually not be of much necessity.

References NoIdentification().

TagBaseID::TagBaseID ( const char *  name,
TagBase parent

Tag which include an identifier will be derived from this TagBaseID class.

Whenever created, they are automatically assigned a unique identifier (see the sswf::TagHeader::NextID(void) function).

The TagBaseID is itself derived from the TagBase object. The name and parent parameters are directly passed down to the TagBase constructor.

If the tag is created without a parent, or an invalid parent pointer, then the sswf::TagHeader::NextID(void) function cannot be found. The result is that no identifier is assigned this the tag.
name The type of the tag in the form of a string
parent The parent tag (a header or a sprite)

References sswf::assert(), f_id, f_identified, sswf::TagBase::Header(), sswf::TagHeader::NextID(), and SSWF_ID_NONE.

Member Function Documentation

bool TagBaseID::HasIdentification ( void   )  const

This function checks whether a tag supposed to have an identifier really has one.

true when the object is still identified, and false otherwise

References f_identified.

Referenced by sswf::TagBase::FindID().

sswf_id_t TagBaseID::Identification ( void   )  const [virtual]

This function returns the identifier which was given to this tag or SSWF_ID_NONE when it was cancelled by a call to TagBaseID::NoIdentification().

the tag identifier or SSWF_ID_NONE

References f_id.

Referenced by sswf::TagSprite::Save(), and sswf::TagButton::Save().

void TagBaseID::NoIdentification ( void   )

It is possible that a tag which usually has an identifier does not actually need it (at this time this is the case only for Glyphs which are shapes without identification.)

This function will release the identification which can then not be used.

Whenever possible, the identifier of this object will be returned to the pool of available identifiers.

References f_id, f_identified, sswf::TagBase::Header(), sswf::TagHeader::RemoveID(), and SSWF_ID_NONE.

Referenced by sswf::TagShape::Glyph(), and ~TagBaseID().

ErrorManager::error_code_t TagBaseID::ParseID ( const Data data  )

This function reads the identifier of this object and saves it in the object.

The pointer will be moved by 16 bits after ReadAlign() was called on the data object.
[in] data Retrieve the object identifier from this data buffer
An error if one occurs, ERROR_CODE_NONE otherwise
See also:
TagBaseID::SaveID(Data& data) const

References f_id, f_identified, and sswf::Data::GetShort().

Referenced by sswf::TagSprite::ParseTag(), sswf::TagEditText::ParseTag(), sswf::TagCSMTextSettings::ParseTag(), sswf::TagButton::ParseTag(), and sswf::TagBinaryData::ParseTag().

int TagBaseID::SaveID ( Data data  )  const

This function will save the identifier of 'this' tag in the specified Data buffer.

data The data buffer used to save the tag
The function returns 0 when it succeeds and non-zero when it fails
See also:
TagBaseID::ParseID(const Data& data)

References sswf::assert(), f_id, f_identified, and sswf::Data::PutShort().

Referenced by sswf::TagText::Save(), sswf::TagSprite::Save(), sswf::TagSound::Save(), sswf::TagShape::Save(), sswf::TagImage::Save(), sswf::TagFont::Save(), sswf::TagEditText::Save(), sswf::TagButton::Save(), sswf::TagBinaryData::Save(), and sswf::TagCSMTextSettings::SaveCSMTextSettings().

Member Data Documentation

The documentation for this class was generated from the following files:
