SWF Gradient Record (swf_gradient_record)

SWF Structure Info
Tag Flash Version:
3
SWF Structure:
struct swf_gradient_record {
	if(f_tag == DefineMorphShape || f_tag == DefineMorphShape2) {
		unsigned char	f_position;
		swf_rgba	f_rgba;
		unsigned char	f_position_morph;
		swf_rgba	f_rgba_morph;
	}
	else if(f_tag == DefineShape3 || f_tag == DefineShape4) {
		unsigned char	f_position;
		swf_rgba	f_rgba;
	}
	else {
		unsigned char	f_position;
		swf_rgb		f_rgb;
	}
};

The first record position should be 0 and the last 255. The intermediate should use the corresponding value depending on their position in the gradient effect.

A linear gradient is defined from left to right. A radial from inside to outside. In order to see the full effect of the gradient, one needs to define its matrix properly. The gradients are always drawn in a square with coordinates -819.2, -819.2 to +819.2, +819.2 (in pixels, that's 16384 in TWIPs). The usual is to scale the gradient square down, translate to the proper position and rotate as necessary. There is no point in rotating a radial gradient.

IMPORTANT NOTE: If you use positions (see f_position) which are too close to each others, you are likely to see a reverse effect of what you would expect (Well... at least in the Macromedia plugin V5.0 — the gradient goes the wrong way between each color change!!!).

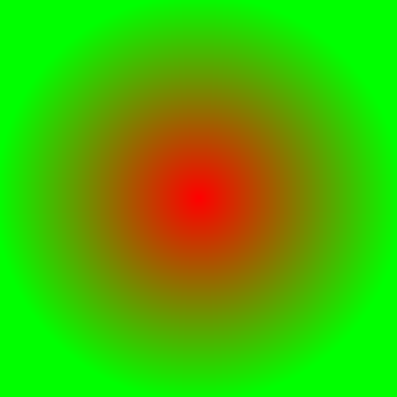

Fig 1. Red to green radial fill

The image in Fig 1. shows you a radial fill using pure red as the color at position 0 and pure green at position 255. It is often used to draw a round corner of an object such as a button.

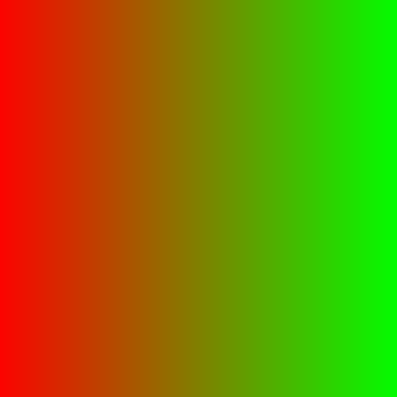

Fig 2. Red to green linear fill

The image in Fig 2. shows you a linear fill using pure red as the color at position 0 and pure green at position 255. It goes from left to right when no rotation is applied. Using a rotation provides means to have the colors going top to bottom or in diagonals.
